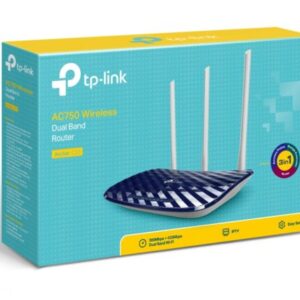

AC750 WIRELESS DUAL BAND ROUTER ARCHER C20

Supports 802.11ac standard – the next generation of Wi-Fi
Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
3 external antennas provide stable omnidirectional signal and superior wireless coverage

د.ا 35.00

brands	TP-LINK

HARDWARE FEATURES
Interface	4 10/100Mbps LAN ports 1 10/100Mbps WAN port
Button	WPS/Reset Button Wireless On/Off Switch Power On/Off Button
External Power Supply	12VDC /1A
Dimensions ( W x D x H )	9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna	2 × 2.4GHz Antennas 1 × 5GHz Antenna
Antenna Type	Three dual band fixed antennas
Compatibility	NBN – Fibre to the Premises (FTTP) NBN – Fibre to the Home (FTTH) For further information on NBN connections please visit: http://www.nbnco.com.au/learn-about-the-nbn/network-technology.html

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps
Reception Sensitivity	5GHz: 11a 54M: -76dBm; 11ac VHT20 MCS8: -71dBm; 11ac VHT40 MCS9: -66dBm; 11ac VHT80 MCS9: -62dBm 2.4GHz: 11g 54M: -76dBm11n; HT20 MCS7: -73dBm; 11n HT40 MCS7: -71dBm
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm

SOFTWARE FEATURES
Quality of Service	WMM, Bandwidth Control
Management	Access Control Local Management Remote Management
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comexe, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall IP Address Filtering/MAC Address Filtering/Domain Filtering IP and MAC Address Binding
Protocols	Supports IPv4 and IPv6
Guest Network	2.4GHz guest network × 1 5GHz guest network × 1

OTHERS
Certification	CE, FCC, RoHS
Package Contents	AC750 Wireless Dual Band Router Archer C20 Power Supply Unit Ethernet Cable Quick Installation Guide
Box Dimensions (W X D X H)	14 x 8.8 x 2.7 in. (357x223x68mm)
System Requirements	Microsoft Windows XP/Vista/7/8/8.1/10, MAC OS, UNIX or Linux Internet Explorer, Firefox, Chrome, Safari or other Java-enabled browsers Cable or DSL or Fiber Modem/Terminal Subscription with an Internet Service Provider (for Internet access)
Environment	Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
