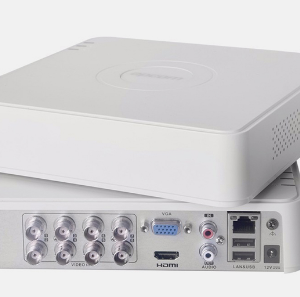

Name: HIKVISION DS-7108HQHI-K1 DVR
Brand: HIKVISION
SKU: 9385
Price: 70.00 JOD
Availability: InStock

brands	HIKVISION

Video compressionH.265 Pro+/H.265 Pro/H.265/H.264+/H.264
Analog video input8-ch BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI input4 MP, 3 MP, 1080p25, 1080p30, 720p25, 720p30, 720p50, 720p60 Note: The 3 MP signal input is only available for channel 1 of DS-7104HQHI-K1, channel 1/2 of DS-7108HQHI-K1, and channel 1/2/3/4 of DS-7116HQHI-K1.
AHD input4 MP, 1080p25, 1080p30, 720p25, 720p30
HDCVI input4 MP, 1080p25, 1080p30, 720p25, 720p30
CVBS inputSupport
IP video input4-ch (up to 12-ch) Up to 6 MP resolution Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compressionG.711u
Audio input/Two-way audio input1-ch, RCA (2.0 Vp-p, 1 KΩ)

HDMI/VGA output1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
Encoding resolutionWhen 1080p Lite mode not enabled: 4 MP lite/3 MP/1080p/720p/WD1/4CIF/VGA/CIF; When 1080p Lite mode enabled: 4 MP lite/3 MP/1080p lite/720p lite/WD1/4CIF/VGA/CIF
Frame rateMain stream: When 1080p Lite mode not enabled: For 4 MP stream access: 4 MP lite@15fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25fps (P)/30fps (N) For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 4 MP lite/3 MP@15fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate32 Kbps to 6 Mbps
Audio output1-ch, RCA (Linear, 1 KΩ)
Audio bit rate64 Kbps
Dual streamSupport
Stream typeVideo, Video & Audio
Synchronous playback8-ch
