HDMI EXTENDER 60M TRANSMITTER TX RX HDMI TO RJ45 CONVERTOR BY Cat5e/6 CABLE

1 Support Video Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
2 signal transmission: a cat5e or cat6 cable (recommended) substitute HDMI cable, the cable between the receiver and the transmitter up to 60 meters
3 Support Video Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
4 Support audio formats: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD
5 LED indicator: When the power or extenders work associated LED lights will illuminate
6 Use AWG26 specifications of cable signal transmission up to 60 meters
7 no signal loss
8 simple installation
9 DC5V/2A external power adapter

Length of CAT-6/CAT-5E cable between Rx and TX:Up to 60 meters
HDMI Input: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio input: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
HDMI Output: 24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support audio output: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth: 165MHz
Max baud rate: 1.65Gbps
Input video signal: 0.5~1.5Volts p-p
Output DDC signal: 5Volts p-p (TT1L)
Input HDMI cable distance: ≤15m AWG26 HDMI standard cable
Output HDMI cable distance: ≤20m AWG26 HDMI standard cable
TX Max working current: 510mA
RX Max working current: 100mA
Power adapter format: Input:AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range: (-15 to +55 °C)
Operating Humidity range:5 to 90%RH (No Condensation)

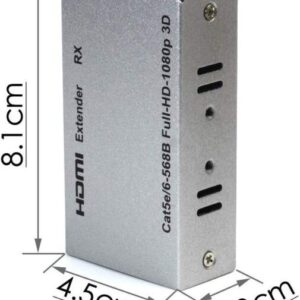

Dimension (L x W x H): 81x43x22 (mm)
TX Weight: 100g
RX Weight: 120g

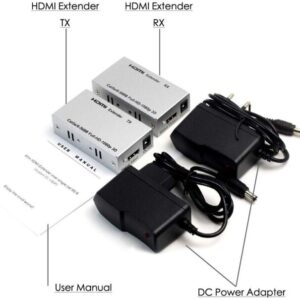

The Package includes:
1. TX Extender :1pc RX Extender:1 pc
2. 5V DC Power adapter
3. User Manual
